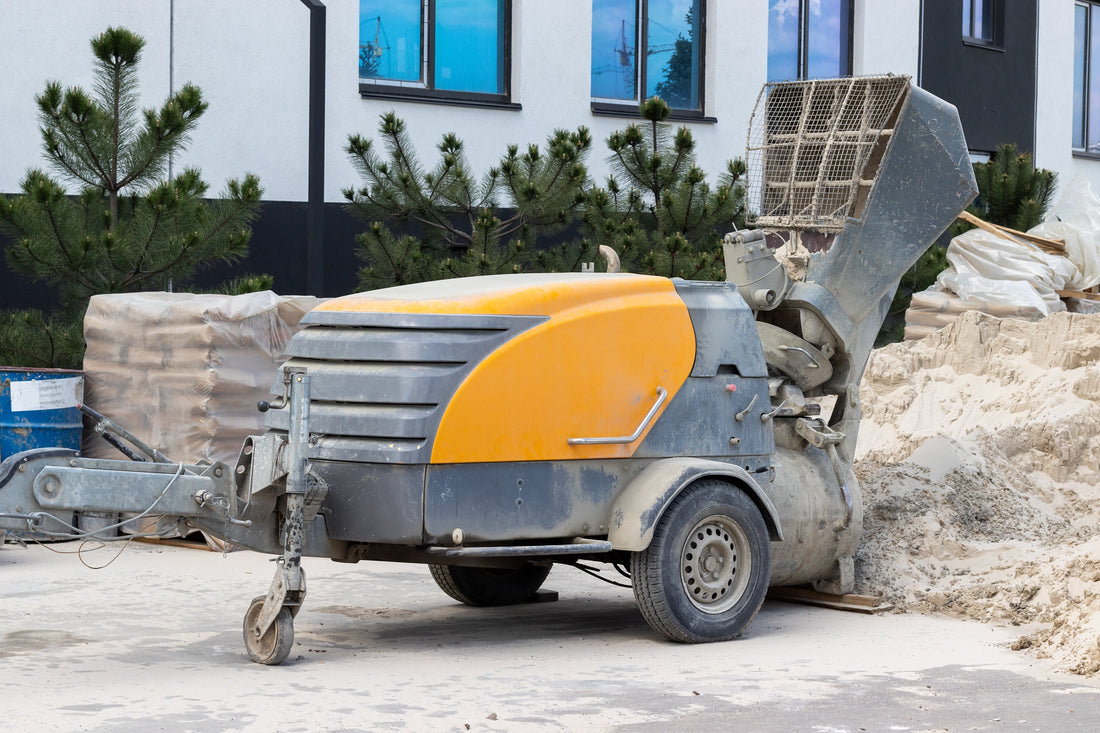

Screed pumps are essential equipment for modern screeding projects, enabling efficient mixing and delivery of screed materials across large floor areas. This comprehensive guide covers everything from pre-use checks through to cleaning and maintenance.

Pre-Use Inspection Checklist

Before operating any screed pump, a thorough inspection ensures safe and efficient operation. Key checks include:

  • Hydraulic oil levels — check the reservoir is at the correct level and top up with the manufacturer's specified oil if needed
  • Water supply — ensure an adequate clean water supply is connected and flowing correctly
  • Mixing blades — inspect for wear, damage, or looseness; worn blades reduce mixing efficiency and screed quality
  • Pipe connections — verify all delivery pipe joints are secure with no splits, cracks, or worn seals
  • Electrical connections — check cables, plugs, and RCD protection before powering up
  • Emergency stop — test the emergency stop function before beginning any mixing operations
  • Hopper and outlet — clear any residual material from previous use; check the outlet valve operates freely

Mixing Procedure

Consistent mixing is critical to screed quality. Follow these steps for reliable results:

  1. Load the correct volume of sharp sand into the hopper, ensuring it is free from contamination, organic matter, and oversized particles
  2. Add the specified quantity of cement — typically one bag (25kg) per measured volume of sand depending on your target mix ratio
  3. Begin the mixing cycle with a controlled amount of water. The water-to-cement ratio directly affects final strength, so measure carefully rather than adding water by eye
  4. Monitor the consistency during mixing. The screed should form a ball when squeezed but not release excess water — this indicates the correct semi-dry consistency
  5. Once mixed to the correct consistency, open the delivery valve and pump the material through the pipe system to the laying area

Dealing with Pipe Blockages

Blockages in screed delivery pipes are a common operational issue. They typically occur at bends, junctions, or where the mix has become too dry. To locate a blockage:

  • Tap along the pipe with a rubber mallet — the sound changes from hollow to dull at the blockage point
  • Check common blockage points first: the pump outlet, reducer sections, and any tight bends
  • Never attempt to clear a blockage while the pump is under pressure — always relieve pressure first by opening bleed valves

To clear a blockage, disconnect the pipe at the nearest coupling to the blockage point. Use a wooden rod or compressed air (with appropriate safety measures) to push the material through. Reconnect and flush with a small amount of wet mix before resuming normal operations.

Mixing Vessel Blockages

If the blockage is within the pump's mixing vessel rather than the delivery pipe, the approach differs:

  • Stop the pump and disengage the mixing blades immediately
  • Check the outlet valve area where material transitions from the mixer to the delivery system
  • Remove any hardened material, oversized aggregate, or foreign objects causing the obstruction
  • Inspect the mixing blades for damage that may have caused material to compact rather than flow

Emergency Stop Procedure

In any emergency situation, follow this sequence:

  1. Press the emergency stop button immediately — this cuts power to the mixing blades and pump mechanism
  2. Close the delivery valve to prevent material continuing to flow under residual pressure
  3. If safe to do so, relieve pressure in the delivery system by opening the bleed valve
  4. Do not restart the equipment until the cause of the emergency has been identified and resolved
  5. Record the incident and report it to the site supervisor

Cleaning After Use

Proper cleaning extends equipment life and prevents problems on the next job:

  1. Run clean water through the mixing vessel while the blades are turning to flush residual screed material
  2. Pump clean water through the delivery pipes until the water runs clear at the outlet end
  3. Disconnect and drain all pipe sections individually
  4. Clean the hopper, outlet valve, and any filters or screens
  5. Apply a light coating of release oil to metal surfaces to prevent cement adhesion and corrosion

Rolling and Storing Pipes

Screed delivery pipes should be properly rolled for transport and storage. Lay the pipe out straight, then coil it into loops of approximately 1 metre diameter. Secure each coil with rope or cable ties at three points to prevent unravelling during transport. Store pipes under cover to prevent UV degradation and ensure they are fully drained to avoid frost damage in winter.
