Floor Substrate Preparation for Screeding

Proper substrate preparation is the foundation of any successful screeding project. Whether you are working with a new concrete slab or an existing floor, the condition of the base determines the bond strength, flatness, and long-term performance of the screed above it.

Why Substrate Preparation Matters

A poorly prepared substrate is one of the most common causes of screed failure. Contaminants, surface laitance, and uneven profiles all prevent proper adhesion and can lead to debonding, hollow spots, and cracking. Taking the time to prepare the base correctly is always more cost-effective than remedial work later.

Assessing the Existing Substrate

Before any preparation work begins, assess the substrate for:

Surface strength — use a scratch test or BRE screed tester to check the substrate is structurally sound
Contamination — look for oil, grease, paint, curing compounds, adhesive residues, or any other contaminants that could prevent bonding
Flatness — check with a 2-metre straightedge. For unbonded screeds, the substrate flatness directly affects the minimum screed thickness and risk of cracking at high points
Moisture content — test using a calibrated hygrometer or calcium carbide method. Excessive moisture in the substrate can cause problems with DPM adhesion and screed drying
Cracks and defects — map any structural cracks, construction joints, or areas of damage that need treatment before screeding

Preparation Methods for Bonded Screeds

Bonded screeds require the strongest connection between screed and substrate. The concrete surface must be mechanically prepared to expose the aggregate and provide a key for the bonding slurry:

Shot blasting — the most common method for large areas. Fires steel shot at the surface to remove laitance and create a textured profile. Collect and dispose of dust properly
Scabbling — uses pneumatic or electric scabblers to chip away the surface layer. Effective for smaller areas or where shot blasting equipment cannot access
Planing — rotary planing machines remove a controlled depth of surface material. Useful for levelling minor irregularities while preparing the surface
Diamond grinding — provides a smooth but keyed surface. Particularly suited to preparation before thin-section levelling compounds

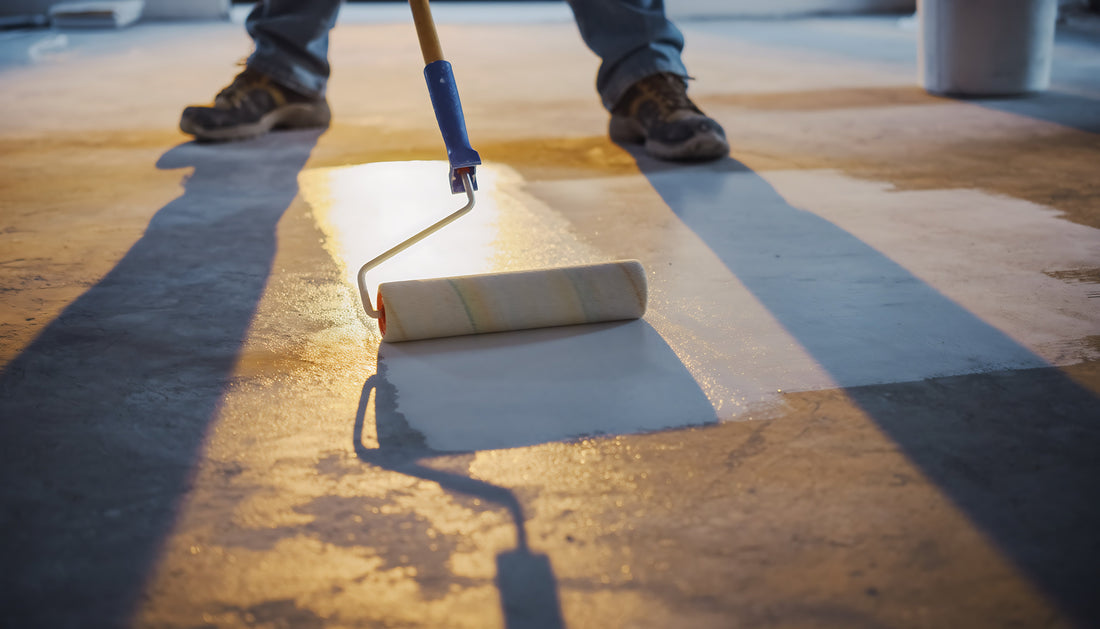

After mechanical preparation, vacuum clean the surface thoroughly. Apply a bonding slurry (typically a cement-SBR mix or proprietary bonding agent) immediately before laying the screed, working in manageable sections to prevent the slurry drying before the screed is placed.

Preparation for Unbonded Screeds

Unbonded screeds sit on a separating membrane rather than bonding directly to the substrate. While the preparation requirements differ, they are equally important:

The substrate must be flat — any high points will create thin spots in the screed above, and any low points will mean the screed is thicker than designed, affecting drying times
Fill any significant depressions or holes in the substrate with a suitable repair mortar and allow to cure
Lay the polyethylene separating membrane (minimum 500 gauge / 125 microns) with joints lapped by at least 200mm and taped
Turn the membrane up at all perimeters and around any penetrations

Installing Rigid Floor Insulation

For floating floor constructions over insulation, the preparation sequence is critical:

DPM installation — lay the damp-proof membrane over the concrete substrate, ensuring all joints are properly lapped and sealed
Perimeter insulation — install resilient closed-cell foam strips around all walls, columns, and penetrations before laying the main insulation boards. This isolates the screed from the structure and accommodates thermal movement
Insulation board layout — lay rigid insulation boards (EPS, XPS, or PIR) with joints tightly butted and staggered. Avoid continuous joint lines that could create a weak point in the floor
Taping joints — tape all insulation board joints with a suitable self-adhesive tape to prevent screed material migrating into the gaps and creating a bridge to the substrate
Separating layer — lay a polyethylene sheet over the insulation as a slip membrane before screeding. This prevents moisture from the wet screed being absorbed by certain insulation types

Flatness Requirements for Substrates

A flat concrete substrate is one of the most critical pre-requisites for the successful installation of unbonded and floating screeds. BS 8204-1 provides guidance on acceptable tolerances — as a general rule, the substrate should not deviate more than 10mm under a 3-metre straightedge for standard applications.

Why Flatness Is Critical for Unbonded Screeds

Unbonded screeds are designed to slip freely on a polythene membrane, making them suitable for screed depths over 50mm. Because the screed is not adhered to the base, any steps, ridges, or uneven areas in the substrate can restrict this movement. Restricted movement creates localised stress concentrations in the screed — one of the most common causes of random, uncontrolled cracking in unbonded floor systems.

Perimeter Detailing

To accommodate the natural movement of an unbonded screed, a 10mm closed-cell polyethylene foam strip should be installed around all perimeters, columns, and penetrations before the screed is placed. This isolates the screed from the surrounding structure and absorbs expansion and contraction without transferring stress into the screed.

When Pre-Levelling Is Needed

Where the concrete substrate has significant surface imperfections, stepped areas, or deviations exceeding the 10mm tolerance, a pre-levelling system should be used before installing the separating membrane. A self-smoothing compound is generally the most effective solution for reducing surface irregularities to an acceptable level. While this adds an initial cost, it is almost always more economical than the expense of repairing cracked or debonded screeds — or remediating damaged floor finishes — at a later stage of construction.

Remedial Options for Out-of-Tolerance Substrates

Self-levelling compound — the preferred solution for creating a smooth, flat surface over large areas
Localised grinding — effective for isolated high spots or ridges
Increased screed thickness — where levelling is impractical, increasing the minimum screed depth can compensate for minor substrate irregularities, though this adds weight and material cost
