Preventing Screed Cracks: Joints, Reinforcement & Solutions
Cracking is the most common screed defect and the most frequently raised concern on construction projects. While not all cracks indicate structural failure, they can compromise floor finish performance, create maintenance issues, and undermine confidence in the installation. Understanding what causes cracks and how to prevent them is essential for reliable flooring.
Types of Screed Cracks
Shrinkage Cracks
The most common type. As cement hydrates and the screed dries, it shrinks. If this shrinkage is restrained — by bond to the substrate, by adjacent walls, or by the screed's own internal friction — tensile stress develops. When this stress exceeds the screed's tensile strength, it cracks.
Shrinkage cracks are typically narrow (under 0.5mm), relatively straight, and often form a pattern following restraint lines — for example, at re-entrant corners, around columns, or where screed bays meet.
Thermal Cracks
Caused by temperature cycling, particularly in UFH installations. Repeated expansion and contraction creates fatigue stress that eventually causes cracking, even in screeds that initially appeared sound.
Structural Cracks
Caused by substrate movement, overloading, or inadequate screed thickness. These are typically wider than shrinkage cracks (over 1mm) and may be associated with vertical displacement (one side of the crack is higher than the other).
Prevention Strategy 1: Movement Joints
The most effective crack prevention measure. Movement joints (also called control joints or contraction joints) create predetermined weak points where the screed can crack in a controlled manner, rather than randomly across the floor.
Perimeter joints: A compressible strip (typically 10mm closed-cell foam) around all perimeter walls, columns, and fixed elements. This allows the screed to shrink without restraint from the surrounding structure.
Bay joints: For large areas, divide the screed into bays. Maximum bay size for traditional screeds is typically 40m² or 6m maximum dimension. Flowing screeds can accommodate larger bays — up to 200m² in some products — because their lower shrinkage and better stress distribution reduce cracking risk.
Daywork joints: Where screed is laid in multiple pours, the junction between pours must be treated as a joint. Ensure clean, square edges and use bonding primers at daywork joints.
Prevention Strategy 2: Reinforcement
Polypropylene Fibres
The most popular reinforcement method for domestic and light commercial screeds. Added to the mix at 0.6-0.9kg/m³, polypropylene fibres distribute throughout the screed and control early-age shrinkage cracking by bridging micro-cracks before they can propagate.
Fibres are cost-effective (typically adding only £1-2/m² to material cost) and require no additional installation labour — they're simply mixed into the screed.
Steel Fibres
For heavy-duty applications requiring superior crack control and load-bearing capacity. Added at 20-40kg/m³, steel fibres provide significantly higher tensile strength than polypropylene. They're commonly specified for industrial floors, warehouse screeds, and areas with vehicle traffic.
Wire Mesh

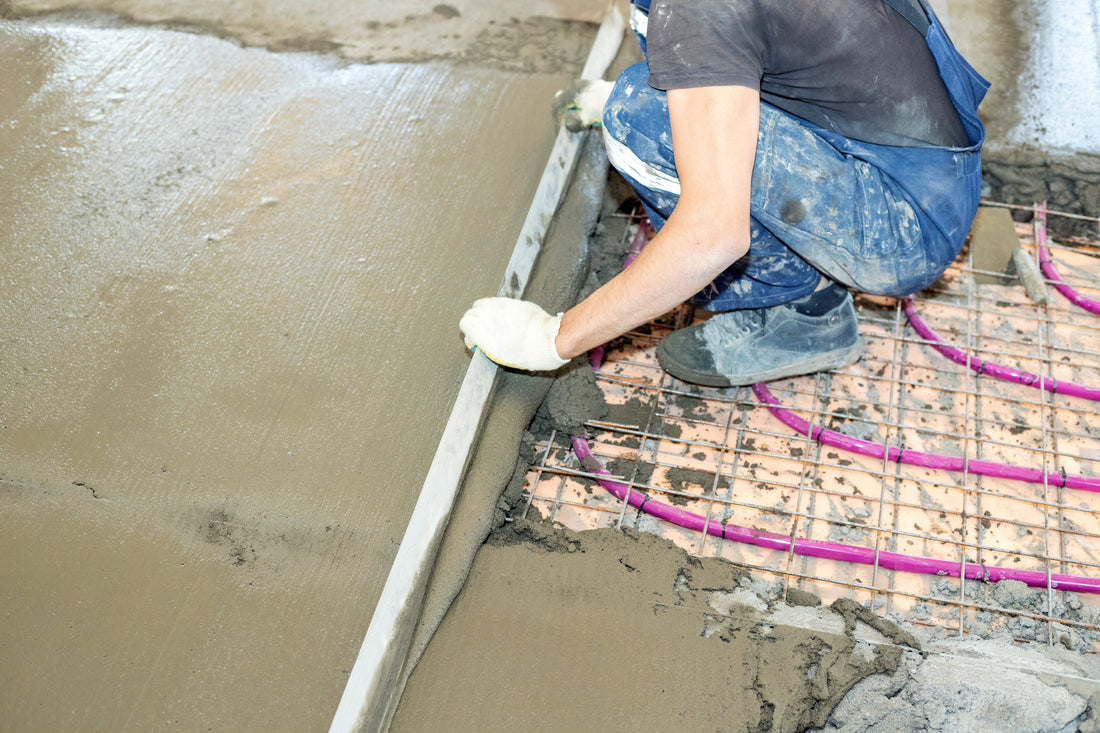

Traditional reinforcement using welded wire mesh (typically A142 or A193 grade). Effective but more labour-intensive to install than fibres. The mesh must be positioned in the upper third of the screed to be effective — if it drops to the bottom during installation, it provides minimal benefit.
Prevention Strategy 3: Product Selection
Choosing the right screed product is itself a crack prevention strategy. Flowing screeds have inherently lower shrinkage than traditional hand-laid screeds because they use less water and their self-compacting nature eliminates voids and weak spots that can initiate cracks.
Anhydrite screeds are particularly low-shrinkage — calcium sulphate undergoes minimal dimensional change during setting and drying, making cracking significantly less likely than with cement-based alternatives.
Prevention Strategy 4: Proper Curing
Adequate curing prevents rapid surface drying, which is a primary cause of shrinkage cracking. Cover with polythene for minimum 7 days, control environmental conditions, and follow manufacturer curing instructions precisely.
